Fitting a psychometric function at the subject level#

Author: Nicolas Legrand nicolas.legrand@cas.au.dk

import pytensor.tensor as pt
import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
from scipy.stats import norm

import pymc as pm

sns.set_context('talk')

In this example, we are going to fit a cummulative normal function to decision responses made during the Heart Rate Discrimination task. We are going to use the data from the HRD method paper [Legrand et al., 2022] and analyse the responses from one participant from the second session.

# Load data frame
psychophysics_df = pd.read_csv('https://github.com/embodied-computation-group/CardioceptionPaper/raw/main/data/Del2_merged.txt')

First, let’s filter this data frame so we only keep subject 19 (sub_0019 label) and the interoceptive condition (Extero label).

this_df = psychophysics_df[(psychophysics_df.Modality == 'Extero') & (psychophysics_df.Subject == 'sub_0019')]
this_df.head()

	TrialType	Condition	Modality	StairCond	Decision	DecisionRT	Confidence	ConfidenceRT	Alpha	listenBPM	...	EstimatedThreshold	EstimatedSlope	StartListening	StartDecision	ResponseMade	RatingStart	RatingEnds	endTrigger	HeartRateOutlier	Subject
1	psi	Less	Extero	psi	Less	2.216429	59.0	1.632995	-0.5	78.0	...	22.805550	12.549457	1.603353e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	False	sub_0019
3	psiCatchTrial	Less	Extero	psiCatchTrial	Less	1.449154	100.0	0.511938	-30.0	82.0	...	NaN	NaN	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	False	sub_0019
6	psi	More	Extero	psi	More	1.182666	95.0	0.606786	22.5	69.0	...	10.001882	12.884902	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	False	sub_0019
10	psi	More	Extero	psi	More	1.848141	24.0	1.448969	10.5	62.0	...	0.998384	13.044744	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	False	sub_0019
11	psiCatchTrial	More	Extero	psiCatchTrial	More	1.349469	75.0	0.561820	10.0	72.0	...	NaN	NaN	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	1.603354e+09	False	sub_0019

5 rows × 25 columns

This data frame contain a large number of columns, but here we will be interested in the Alpha column (the intensity value) and the Decision column (the response made by the participant).

this_df = this_df[['Alpha', 'Decision']]
this_df.head()

	Alpha	Decision
1	-0.5	Less
3	-30.0	Less
6	22.5	More
10	10.5	More
11	10.0	More

These two columns are enought for us to extract the 3 vectors of interest to fit a psychometric function:

The intensity vector, listing all the tested intensities values
The total number of trials for each tested intensity value
The number of “correct” response (here, when the decision == ‘More’).

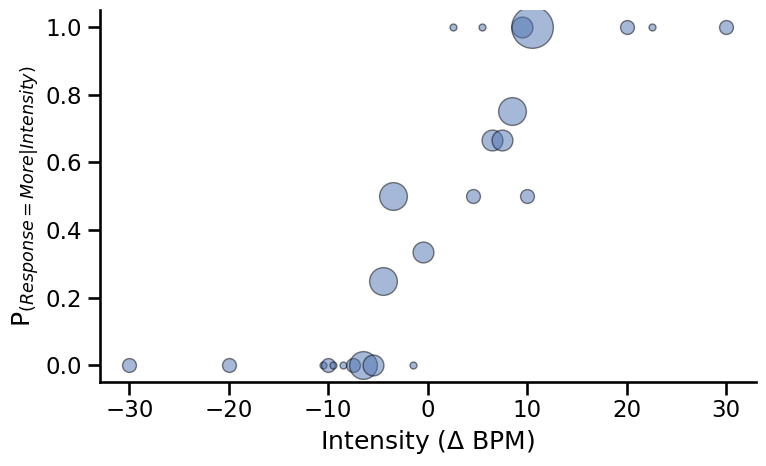

Let’s take a look at the data. This function will plot the proportion of “Faster” responses depending on the intensity value of the trial stimuli (expressed in BPM). Here, the size of the circle represent the number of trials that were presented for each intensity values.

fig, axs = plt.subplots(figsize=(8, 5))
for ii, intensity in enumerate(np.sort(this_df.Alpha.unique())):
    resp = sum((this_df.Alpha == intensity) & (this_df.Decision == 'More'))
    total = sum(this_df.Alpha == intensity)
    axs.plot(intensity, resp/total, 'o', alpha=0.5, color='#4c72b0',
             markeredgecolor='k', markersize=total*5)
plt.ylabel('P$_{(Response = More|Intensity)}$')
plt.xlabel('Intensity ($\Delta$ BPM)')
plt.tight_layout()
sns.despine()

../../_images/43efd55d41aa4a1bc1f1edcf25aa685fcec0d71efc434a9c5b65a61c643a788e.png

Model#

The model was defined as follows:

\[ r_{i} \sim \mathcal{Binomial}(\theta_{i},n_{i})\]

\[ \Phi_{i}(x_{i}, \alpha, \beta) = \frac{1}{2} + \frac{1}{2} * erf(\frac{x_{i} - \alpha}{\beta * \sqrt{2}})\]

\[ \alpha \sim \mathcal{Uniform}(-40.5, 40.5)\]

\[ \beta \sim |\mathcal{Normal}(0, 10)|\]

Where \(erf\) denotes the error functions and \(\phi\) is the cumulative normal function.

Let’s create our own cumulative normal distribution function here using pytensor.

def cumulative_normal(x, alpha, beta):
    # Cumulative distribution function for the standard normal distribution
    return 0.5 + 0.5 * pt.erf((x - alpha) / (beta * pt.sqrt(2)))

We preprocess the data to extract the intensity \(x\), the number or trials \(n\) and number of hit responses \(r\).

x, n, r = np.zeros(163), np.zeros(163), np.zeros(163)

for ii, intensity in enumerate(np.arange(-40.5, 41, 0.5)):
    x[ii] = intensity
    n[ii] = sum(this_df.Alpha == intensity)
    r[ii] = sum((this_df.Alpha == intensity) & (this_df.Decision == "More"))

# remove no responses trials
validmask = n != 0
xij, nij, rij = x[validmask], n[validmask], r[validmask]

Create the model.

with pm.Model() as subject_psychophysics:

    alpha = pm.Uniform("alpha", lower=-40.5, upper=40.5)
    beta = pm.HalfNormal("beta", 10)

    thetaij = pm.Deterministic(
        "thetaij", cumulative_normal(xij, alpha, beta)
    )

    rij_ = pm.Binomial("rij", p=thetaij, n=nij, observed=rij)

pm.model_to_graphviz(subject_psychophysics)

../../_images/3ac06ad7e3faadee219f67f728b7272815946f85eb2bcd236728dd24e566f9ba.svg

with subject_psychophysics:
    idata = pm.sample(chains=4, cores=4)

Auto-assigning NUTS sampler...

Initializing NUTS using jitter+adapt_diag...

Multiprocess sampling (4 chains in 4 jobs)

NUTS: [alpha, beta]

100.00% [8000/8000 00:04<00:00 Sampling 4 chains, 0 divergences]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 4 seconds.

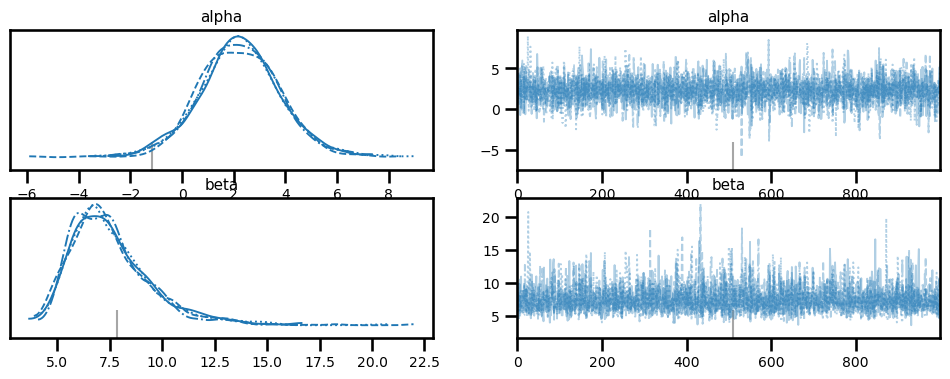

az.plot_trace(idata, var_names=['alpha', 'beta']);

../../_images/6d511825a0ec642a6aa7a97dac18018629cc9761c7ad2962bdd312b2bb27df5b.png

stats = az.summary(idata, ["alpha", "beta"])
stats

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
alpha	2.241	1.600	-0.831	5.255	0.029	0.022	3106.0	2279.0	1.0
beta	7.463	1.856	4.563	11.037	0.034	0.025	3395.0	2775.0	1.0

Hint

Here, \(\alpha\) refers to the threshold value (also the point of subjective equality for this design). This participant had a threshold at estimated at 2.25, which is just slightly positively biased. The \(\beta\) value refers to the slope. A higher value means lower precision. Here, the slope is estimated to be around 7.46 for this participant.

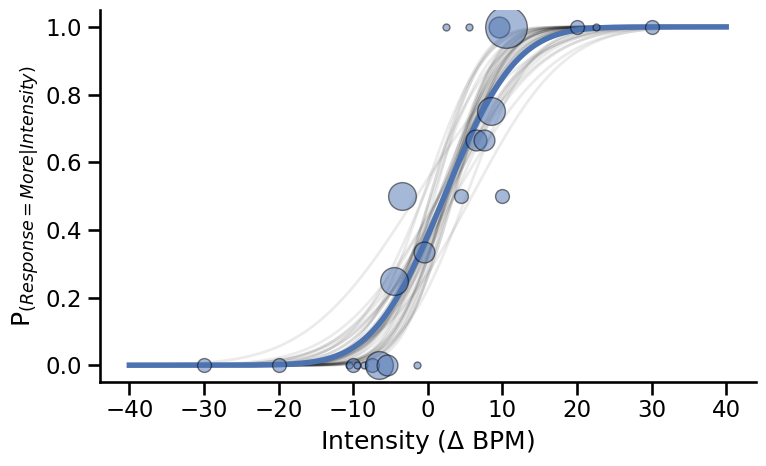

Plotting#

Extrace the last 10 sample of each chain (here we have 4).

alpha_samples = idata["posterior"]["alpha"].values[:, -10:].flatten()
beta_samples = idata["posterior"]["beta"].values[:, -10:].flatten()

fig, axs = plt.subplots(figsize=(8, 5))

# Draw some sample from the traces
for a, b in zip(alpha_samples, beta_samples):
    axs.plot(
        np.linspace(-40, 40, 500),
        (norm.cdf(np.linspace(-40, 40, 500), loc=a, scale=b)),
        color='k', alpha=.08, linewidth=2
    )

# Plot psychometric function with average parameters
slope = stats['mean']['beta']
threshold = stats['mean']['alpha']
axs.plot(np.linspace(-40, 40, 500),
        (norm.cdf(np.linspace(-40, 40, 500), loc=threshold, scale=slope)),
         color='#4c72b0', linewidth=4)

# Draw circles showing response proportions
for ii, intensity in enumerate(np.sort(this_df.Alpha.unique())):
    resp = sum((this_df.Alpha == intensity) & (this_df.Decision == 'More'))
    total = sum(this_df.Alpha == intensity)
    axs.plot(intensity, resp/total, 'o', alpha=0.5, color='#4c72b0',
             markeredgecolor='k', markersize=total*5)

plt.ylabel('P$_{(Response = More|Intensity)}$')
plt.xlabel('Intensity ($\Delta$ BPM)')
plt.tight_layout()
sns.despine()

../../_images/25f8c52d9e7d5b28ae7411b2e336817c85268a7ab9ab0ff9b2879785ebfde84a.png

System configuration#

%load_ext watermark
%watermark -n -u -v -iv -w -p pymc,arviz,pytensor

Last updated: Wed Nov 08 2023

Python implementation: CPython
Python version       : 3.9.18
IPython version      : 8.17.2

pymc    : 5.9.1
arviz   : 0.16.1
pytensor: 2.17.3

pytensor  : 2.17.3
matplotlib: 3.8.1
numpy     : 1.22.0
pandas    : 2.0.3
seaborn   : 0.13.0
arviz     : 0.16.1
pymc      : 5.9.1

Watermark: 2.4.3
